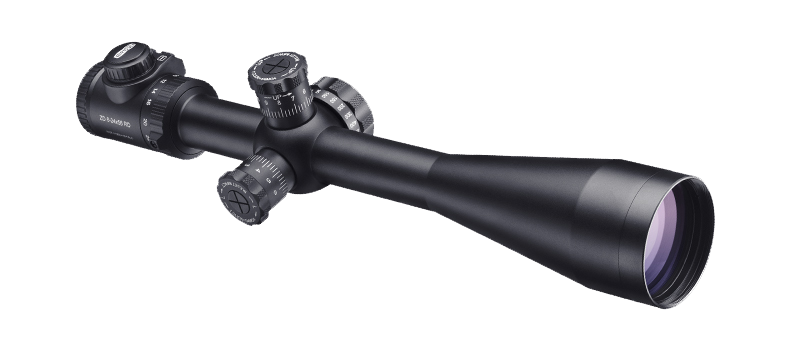

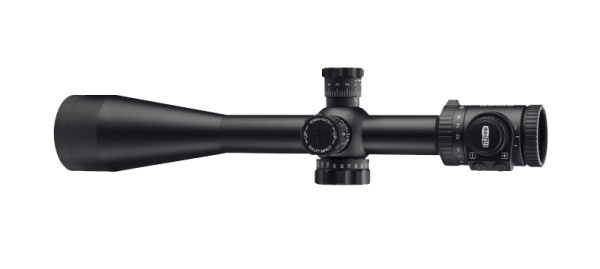

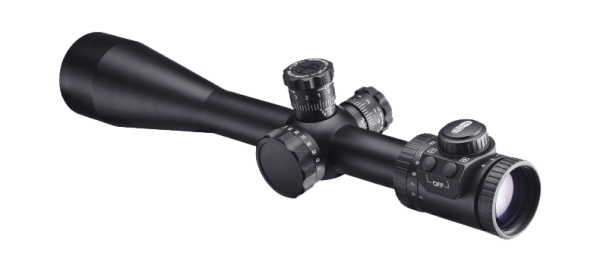

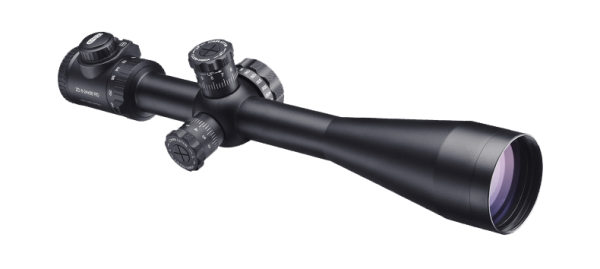

MEOPTA ZD 6-24x56 RD

Magnification                                                                                                             6 - 24 x

Objective lens                                                                                                             56 mm

Objective Filter Thread                                                                                              M59x0.75

Main Tube Size                                                                                                          30 mm

Exit Pupil Diameter                                                                                                    9.1 - 2.3 mm

Eye relief (mm / in)                                                                                                    89 - 80 / 3.5 - 3.1

Field of view (m/100m // ft/100yds)                                                                          5.9 - 1.6 / 18 - 5

Field of View                                                                                                              3.37 - 0.9 °

Focal Plane Position                                                                                                   2

Dioptric compensation                                                                                               -3 / 3 D

Daylight Transmission                                                                                               92 %

Twilight Transmission                                                                                               90 %

Twilight Factor                                                                                                           18.3 - 36.7

Impact per click (cm/100m // in/100yds)                                                                   0.7 / 0.25

Windage and elevation adjustment range (cm/100m // in/100yds)                           241 ver; 122 hor / 87 ver; 44 hor

Paralax Correction                                                                                                      30 m - infinity y/n

Uzunluk (mm / in)                                                                                                      386 / 15.2

Ağırlık (g / oz)                                                                                                            868 / 30.6

A                                                                                                                                 386 mm

B                                                                                                                                 169 mm

C                                                                                                                                 74 mm

D                                                                                                                                 55 mm

E                                                                                                                                  62 mm

F                                                                                                                                  44.5 mm

G                                                                                                                                 30 mm

H                                                                                                                                 136 mm

K                                                                                                                                 82 mm
